The XM8 was the U.S. military designation for a lightweight assault rifle system under development by the United States Army from the late 1990s to early 2000s.The Army worked with the German small arms manufacturer Heckler & Koch (H&K) to develop the system to its requirements in the aftermath of the Objective Individual Combat Weapon (OICW) contract, for which H&K had been a subcontractor to ATK. Although there were high hopes that the XM8 would become the Army's new standard infantry rifle, the project was put on hold in April 2005, and was formally canceled on October 31,2005. General Dynamics was involved in latter stages and H&K had plans to produce the rifle at a plant in Georgia. H&K was British-owned at the start of the project, but was later bought back by a group of German investors. Engineering work was done at facilities in the United States and Germany.
The U.S. Army's purpose in contracting for this prototype weapon was to provide replacement options for the venerable M16 rifle after the XM29 program ran into problems. The Army's goal was a weapon that was cheaper, lighter, and more effective than the M16 and M4 Carbine series of weapons. The XM8 was not just one weapon, but a system which could be reconfigured with appropriate parts to be any one of several variants from a short-barreled personal defense weapon to a bipod-equipped support weapon. It also included an integrated optical sight and IR laser aiming module/illuminator.The XM8 was based on the kinetic energy module of Alliant Techsystems's XM29 OICW project, of which the weapon mechanisms were the responsibility of H&K. Following the indefinite delay of the Objective Individual Combat Weapon program, the U.S. Army requested that the contractors design stand-alone weapons from the XM29's kinetic energy and high explosive modules.The first 30 XM8 prototypes were delivered by November 2003 for preliminary testing. Later, at least 200 developmental prototypes were procured. Among the complaints during testing was that the battery life was too low for the weapon's powered sight system and some ergonomics issues. Two other key issues were reducing the weapon's weight and increasing the heat resistance of the hand guard, which would start to melt after firing too many rounds. The main testing was largely completed, and the Army pushed for funding for a large field test. However, in 2004 Congress denied $26 million funding for 7,000 rifles to do a wide scale test fielding of the XM8 in 2005. At the time the rifle still had developmental goals that were incomplete, primarily associated with the weapon's weight; the battery life had been extended, and a more heat-resistant plastic hand-guard added. The earliest product brochure lists the target weight for the carbine variant at 5.7 lbs (2.6 kg) with the then current prototype at 6.2 lb (2.8 kg). The weight of the carbine prototype had since grown to 7.5 lbs (3.4 kg) according to a brochure released by HK and General Dynamics in January 2005. Army leaders test fire the compact set-up of the XM8 at Fort Benning, Georgia in 2004During the same period, the Army came under pressure from other arms makers to open up the XM8 to competition. The main argument was that the weapon that was being adopted was a substantially different system than for the original competition that ATK and H&K had actually won . Other issues were that the Army has a legislated obligation to prefer U.S.-based manufacturers, and that a previous agreement with Colt Defense required the Army to involve Colt in certain small-arms programs. The XM8 program was put on hold by the Army in 2004. The exact reason why this happened is a matter of debate; some combination of the aforementioned technical issues, funding restrictions, and outside pressure being involved.In 2005, the Army issued a formal Request for Proposals (RFP) for the OICW Increment One family of weapons. This RFP gave manufacturers six months to develop and deliver prototype weapons with requirements very similar to the XM8 capabilities, but with the addition of a squad automatic weapon (SAW) configuration. Currently, no XM8 prototypes have been shown that actually match the capabilities of the M249 (e.g. fast barrel replacement, high sustained rate of fire, belt fed). The OICW Increment One requirement for the SAW includes fast barrel replacement and high sustained rate of fire, but leaves the ammunition feed choice up to the manufacturer.Funding for the M320 grenade launcher, which is a single-shot under-barrel grenade launcher similar to the M203 that was originally intended for the XM8, was approved. The launcher is actually heavier than the M203, but does offer some advantages. The XM320 was designed for use with the existing inventory of M16s and M4s and is also compatible with the XM8. It can also be used as a stand-alone weapon.As of July 19, 2005, the OICW Increment One RFP was put on an eight-week hold, with an indication given that the program was being restructured as a joint procurement program including the Army and unnamed other branches. On October 31, 2005, the OICW Increment One RFP was canceled until further notice.In an article in Jane's Defence Weekly, April 26 2006 (Vol 43, page 30) we learn that "The US Army has again delayed the procurement of its future infantry weapons, this time for more than five years, and is working to field two interim guns in the meantime."
A prototype XM8 carbine - lacking PCAP device on the side rails. Also has the open 'duckbill' rather than 'birdcage' style flash suppressorThe U.S Military's XM8 program was canceled in the autumn of 2005 after being suspended earlier that year. Had this program not been canceled, the XM8 system may have faced competition from weapons such as from the FN SCAR, Remington ACR and HK416. It was later altered and entered as a candidate for the SCAR competition but was unsuccessful.
FURTHER TESTING Edit
In the Fall of 2007 the XM8 was compared to other firearms in a 'dust test.' The competition was based on two previous tests that were conducted in Summer 2006 and Summer 2007 before the latest test in the Fall of 2007. In the Summer 2007 test, M16 rifles and M4 carbines recorded a total of 307 stoppages. In the Fall 2007 test, the XM8 recorded only 127 stoppages in 60,000 total rounds while the M4 carbine had 882. The FN SCAR had 226 stoppages and the HK416 had 233. The difference between the XM8, HK416, and FN SCAR was not statistically significant when correcting for the less reliable STANAG magazine. However, the discrepancy of 575 stoppages between the Summer and Fall 2007 tests of the M4 had Army officials looking into possible causes for the change such as different officials, seasons, and inadequate sample pool size but have stated that the conditions of the test were ostensibly the same.

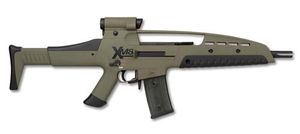

An XM8 compact carbine variant with buttcap attached, fired by a US Army weapons tester.The XM8 is a selective fire 5.56mm assault rifle, firing from a closed rotary bolt. Its design and functioning is similar to that of the Heckler & Koch G36 assault rifle, of which it is a derivative.
MATERIALS AND WEIGHT Edit
The materials used to build the XM8 are almost entirely composites — with the notable exception of the cold hammer forged steel barrel. Preliminary tests in desert and Arctic conditions have shown XM8 to be a rugged weapon, though some complaints arose. It is reported to be capable of firing 15,000 rounds without cleaning or lubrication and up to 20,000 rounds before barrel replacement. In contrast, the M16A2 needs to be cleaned often, and has a barrel life of approximately 7,000–8,000 rounds.Much of the expected cost and weight savings are from the weapon's electronic sight. The sight is much more than a 1.5x red dot sight, including IR lasers and pointers as well. The baseline XM8 carbine (with its integrated sight), for example, can be compared to an M4 carbine with a host of previous-generation electronic add-ons like the AN/PEQ-2, Aimpoint CompM2, Advanced Combat Optical Gunsight, and/or BUIS. Without the advantage of the next-generation combined electronics sight, the XM8 would be both heavier and more expensive than the firearms it is intended to replace. The XM320 grenade launcher, intended to be used with the current M4/M16 firearms as well as the XM8 family, includes feature enhancements.AccessoriesXM8 abandons the standard MIL-STD-1913, for attachment of weapon accessories, in favor of a new standard referred to as PCAP (Picatinny Combat Attachment Points), small oval holes on the forward grip. (A variant was designed with MIL-STD-1913 rails — XM8 R; and some early XM8 prototypes had rails.) PCAP is not backwards compatible with currently fielded attachments that use MIL-STD-1913 rails without using an adapter. The benefit of PCAP, however, is the precision of the accessory's connection with the body of the weapon; accessories utilizing MIL-STD-1913 rails often need adjustment if they are removed and reattached. Additionally, most standard accessory functionality is built-in to the XM8. Where functionality was missing, it was anticipated that accessories would be redesigned to utilize PCAP. In the new OICW Increment One competition, the Army has left the choice of attachment technology up to the manufacturer, with requirements built into the RFP as to the ability of sights to maintain their zero.The M4 carbine barrel is 14.5 inches (368 mm) and the XM8 barrel is 12.5 inches (318 mm) but the rifles have the same overall length. Although a shorter barrel generally results in lower muzzle velocity, Polygonal rifling partially compensates from the loss of velocity from a shorter barrel. An electronic round counter was proposed for the XM8. The system would have tracked the number of rounds fired and the date and time of each shot. The data would then be accessed wirelessly by a device like a PDA. Another benefit would be to monitor unauthorized weapon use or corroborate field reports. Other features included completely ambidextrous controls and an integrated red dot/3x optical zoom scope (later changed to a red dot/1x sight). However the designated marksman configuration used a 3.5x magnification scope.
